Single Fluid Industrial Filter Housing

Model: TGDG

Brand: JHENTEN

Casting type, easy to replace, single round filter
Z JTGDG Single Fluid Industrial Filter Housing the top adopt integrated casting type structure , Using top entry top out design, with the adaptor, can be directly connected to the pipeline, the installation is extremely convenient.

Detail Description

ZJTGDG Single Fluid Industrial Filter have the integrated casting top adoptor structure , Using top entry top out design, with the adaptor, can be directly connected to the pipeline, the installation is extremely convenient.

The filter housing is sanitary grade, polishing precision Ra < 0.6μm, suitable for many kinds of filter requirements

JTGDG Single Fluid Industrial Filter with very compact structure design , the top can be fixed in the pipeline.when you exchange the cartridges, just open the filter housing, the whole process without material liquid leakage.

Drain valve at the bottom.It's convenient for operator to discharge liquid.

Feature

The filter is top entry & top out structure , Can be directly connected to the pipeline
It's easy to change cartridge, and no liquid leakage
Drain valve at the bottom.It's convenient for operator to discharge liquid
Safety seal design

Application

Water Finish: all kinds of water filtration
Food & beverage: wine, mineral water, drinking water filtration
Chemical industry: all kinds of organic solvents, acid, alkali, filtration

Surface Finish

Treatment Type	base：cast
Treatment Type	shell：Mechanical polishing, electrolytic polishing, sand blastingpickling
Polishing precision	Inner surface Ra≤0.4μm , Outside surface Ra≤0.6μm.

Operating Conditions

Max Operating pressure	0.6MPa
Max Operating Temp.	150℃

Material

Filter shell	304, 316L, SAF2507, carbon steel
Drain valve	304, 316L
O-ring	EPDM, PTFE, Viton, Silicone

Connection

Shell connection	quick-open, screwthread
In-outlet N1, N2	1” screw thread
Pressure gauge N3 (optional)	1/4” screw thread
Drain valve N4, N5(Optional)	1/4” screw thread
Cartridge connection	DOE type

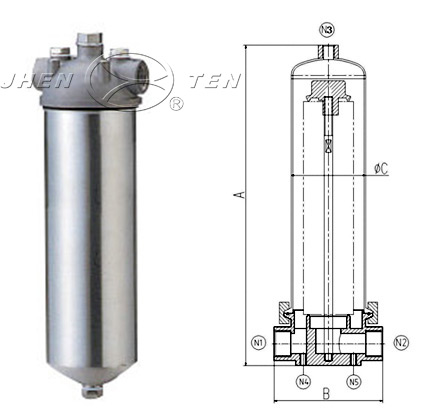

Structure

Dimension Parameters	1pc
	10”	20”	30”
A：Total height	382	632	982
B:The distance from inlet to outlet	130
C：Diameter	Φ89

The above-mentioned data is the standard, it can customize according tocustomer's requirements.

SelectionTable

	［Qty. of cartridge］	［Model of cartridge］	［Cartridges connection］	［Shell material］	［In-outlet Connection］		［O-ring］
JTGDG	1R	20	D	4	L		E
	1R=1pcs	10=10” cartridge	D=DOE type	4= 304		L= thread	E=EPDM
		20=20” cartridge		6= 316L			P=PTFE
		30=30” cartridge					V=Viton
		40=40” cartridge					S=Silicone
