Extraction tank

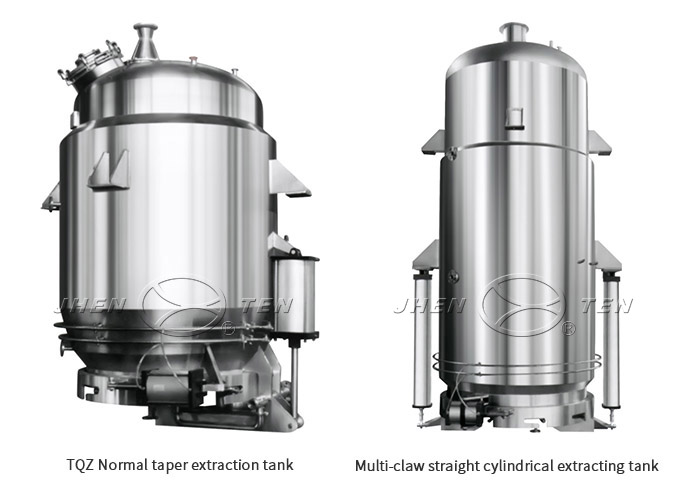

TQ Multifunctional extraction tank
The equipment is applicable to the operations such as decoction of plants and animals at normal pressure and high pressure, warm soaking, hot reflux, forced circulation, percolation, aromatic oil extraction and organic solvent recovery in pharmacy, biology, beverage, food, chemical industry, etc. It is especially suitable for dynamic extraction or counter-current extraction, with short operating time and a high liquid medicine content.
Purpose
The equipment is applicable to the operations such as decoction of plants and animals at normal pressure and high pressure, warm soaking, hot reflux, forced circulation, percolation, aromatic oil extraction and organic solvent recovery in pharmacy, biology, beverage, food, chemical industry, etc. It is especially suitable for dynamic extraction or counter-current extraction, with short operating time and a high liquid medicine content.Accessories
The tank body is equipped with the CIP automatic rotary spray cleaning ball, thermometer, pressure gauge, explosion-proof sight lamp, sight glass, quick-open type feeding inlet and etc., ensuring easy operation and complying with the GMP standard. The contact part is made of imported 304 or 316L.
Complete set supply of the equipment
Extraction tank, defoamer, condenser, cooler, oil-water separator, filter, cylinder console and other accessories.
Rotary type & Large-diameter residue discharging doo
The tank cover can be automatically opened and closed. High temperature and high pressure extraction can be realized, and more than 3Bar can be achieved in the swivel type product. It provides more selection for extracting technology. It can also meet some special technological requirements. With good safety and reliability, it has sufficient safety guarantee functions and the extracting tank has no leakage.
Filtering method
Cylinder side & bottom drain door filtration
For the liquid with high viscosity and difficult to be filtered, the tank side filtering method is adopted. The strainer is installed on the cylinder wall and the medicinal materials will not press and paste on the filter net, so the filter is more unobstructed. The filter is a long hole - shaped stainless steel mesh with laser glazing.
The bottom of the filter using two layers, lower support mesh, upper stainless steel mesh board, net board covered with 0.6×10mm long hole, compared with mat woven mesh, long hole mesh board is more difficult to block, filter unobstructed, stainless steel polishing durable for 6-8 years do not replace.
Technical parameters
Model | TQ-0.3 | TQ-0.5 | TQ-1 | TQ-2 | TQ-3 | TQ-6 | TQ-8 | TQ-10 |
Volume(L) | 300 | 500 | 1000 | 2000 | 3000 | 6000 | 8000 | 10000 |
Design pressure in jacket(Mpa) | 0.3 | |||||||
Diameter of feeding port (mm) | 300 | 300 | 400 | 400 | 400 | 500 | 500 | 500 |
Heating area(㎡) | 1.5 | 2.4 | 3 | 4.7 | 6.5 | 10.5 | 13.8 | 16 |
Condensation area(㎡) | 4 | 4 | 4 | 5.4 | 8 | 10 | 15 | 18 |
Cooling area (㎡) | 0.25 | 0.4 | 1 | 1 | 1 | 2.2 | 2.2 | 3 |
Slag door diameter(mm) | 600 | 600 | 800 | 1000 | 1200 | 1400 | 1500 | 1600 |
Steam consumption(kg/h) | 150 | 200 | 285 | 346 | 570 | 718 | 903 | 1140 |
Weight of equipment(kg) | 650 | 750 | 1000 | 1900 | 2400 | 3025 | 4030 | 5100 |
