Extraction tank

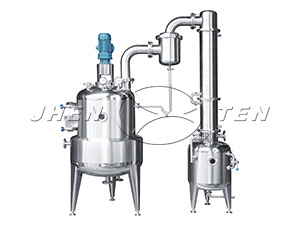

Coffee Extraction Tank

Coffee Extraction Tank

Model: JTRKC

Brand: JHENTEN

The Coffee Extraction Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

Detail Description


The Coffee Extraction Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

Coffee Extraction Tank usually uses vertical circular tank body, the top is an open structure, the bottom is standard conical head,inner wall of tank adopts circular arc transition, no dead corner, easy to clean; tank body and the bottom head is equipped with the jacket and insulation layer, tank inner wall are mirror polished, meet the sanitary standard.


Tank Optional Configuration

The body of Coffee Extraction Tank can chose sterile air filter, thermometer(Digital display or Dial type), pressure gauge, sight glasses, sanitary manhole, liquid in-outlet, CIP Universal rotating cleaning ball, safety valve, also can configure as customers’ requirement.


Application
? Used for extracting coffee


Feature
? Volume:500L~5000L and multiple specification, also can design and manufacture according to customers’ requirement.
? Pneumatic control self-locking type slag extraction valve not only required without leak, but also guarantee under the condition of suddenly without electricity or gas, slag discharge door won't open automatically, safe and reliable operation.
? The connection adopts Tri-clamp, the tanks’ inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm~0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers’ requirement.


Design Parameter

Designpressure

0.02MPa~0.8MPa

DesignTemp
temperature.

According to customers’ requirement(0℃~160℃)


Material

Liner

304、316L

Insulation

Rock wool (keep warm)

Supportlug

304


Connection

In-outlet

Tri-clamp, Flange


Surface Finish

Finish Type

Mechanicalpolishing, electrolytic polishing,sand blasting, pickling

Polishing precision

Inner surface Ra≤0.4μm
Outersurface Ra≤0.6μm


Normal Model And MainTechnical Parameters

Parameter

Model

JTRKC—500

JTRKC—1000

JTRKC—1500

JTRKC—2000

JTRKC—3000

JTRKC—5000

Effective volume:L

500

1000

1500

2000

3000

5000

Barrel

Diameter:mm

Φ900

Φ1100

Φ1250

Φ1300

Φ1600

Φ1800

Height:mm

1100

1000

1200

1500

1500

1800

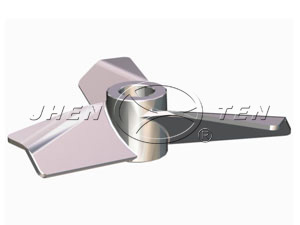

Agitator

Power:kW

1.5

1.5

1.5

2.2

2.2

4

RPM:r/min

60(傾葉開啟渦輪式)(The design can be adjusted according to the customer usingcondition)

The above-mentioned data is the standard, for referenceonly.  It can customize according tocustomer's requirements.
